Single Shaft Shredder Introduction:
Single shaft
shredder from United Tech Machinery is available to recycle wide range of
material. It is an ideal machine for plastic, paper, wood, fiber, rubber,
organic waste a wide variety of non-metallic materials. As per our customer’s
requirements, such as the input size of materials. Capacity and the final
output size etc. We could work out a suitable proposal for our clients. After
being shredder by the machine, the output material could be used directly or go
int to the next step of size reduction.
With the function
of microcomputer control system, it is possible to control automatically start,
stop. Automatic reverse sensors to protect the machine against over loading and
jamming. The output capability
typically range between 300kg/hr –5,000kg/hr+ depending on the different model
and different materials.
1/Detachable rotor blade, easy disassemble and installation, and simple maintenance.
2/Automatic feeder, increase produce efficiency.
3/ Quick change screen for accurate particle size control.
4/ Shock absorbing gearbox reduces stress on drive components.
5/Integrated rotor, assured the cutter clearance between the rotor blade and the counter blade.
6/Enclosed bearing protection design, waterproof and dustproof, extend the bearing work life.
7/PLC control system, automatic reverse sensor to protect the machine against over loading and jamming.
8/Provide the rotor cooler system against the low melting materials, prevent the materials burning while the temperature higher.

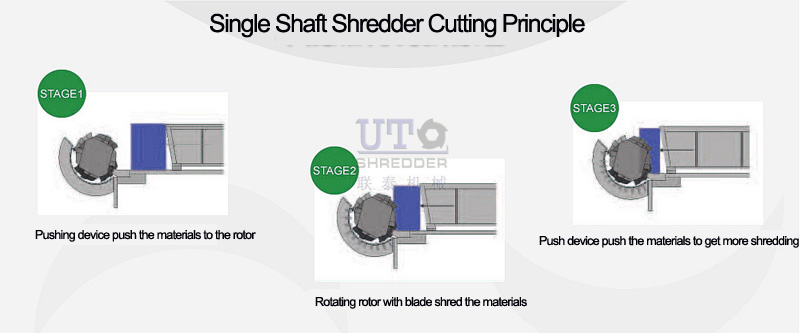

Cutting Principle about the Single Shaft Shredder:

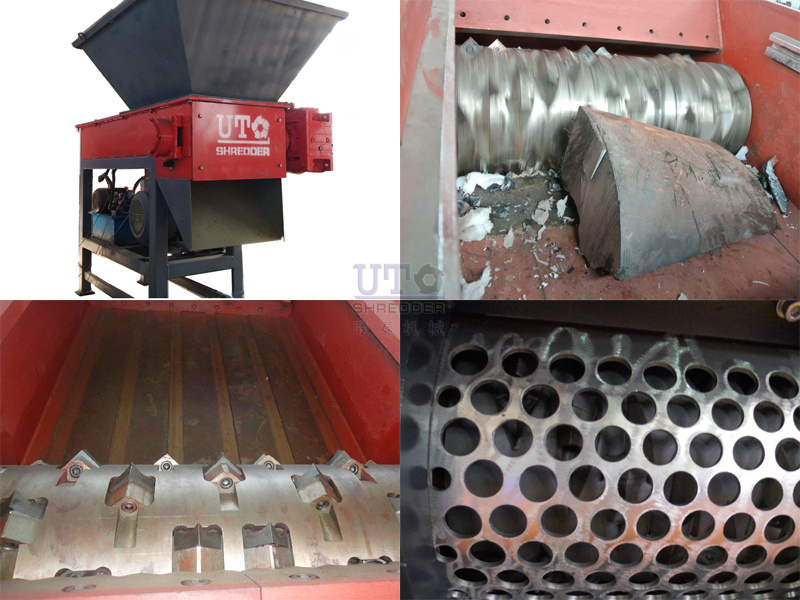

The cutting part
of the single shaft shredder including the rotor, rotor blade, counter blade
and the screen. The minimum mounting clearances between the rotor blade and
counter blade is 0.1mm.
The motor drive
the rotor by high speed rotating trough the speed reducer, therefore the rotor
blade cutting the counter blade. After one cutting, the materials will be
discharged if its size smaller the screen mesh size. Or the material will be
double or more cutting, until the size is smaller than the screen holes.
Single Shaft
Shredder Applications:
Plastic: Film; Jumbo
Bag; PET Bottle; Plastic Barriers; Plastic Pipe; Plastic Boards
Hard Plastic:
Plastic Lump (Purgings); Fiber, High Strength Engineering Plastics ( ABS, PC,
PPS, etc.)
Wood: Timber; Tree
Root; Wood Pallets; Wood Package, etc.
Industrial Solid
Waste: Cable; Light Metal, like Aluminum Can, Aluminum Scrap, etc. White Goods,
like TV Shell, Washing Machine Shell, Refrigerator Body Shell, Computer Shell,
Circuit Board, etc. Solid Waste, like Household Garbage, Medicinal Waste,
Industrial Waste
Others: Rubber, Textile, Fiber & Glass Products, etc
Note:
1. The voltage about the power supply can be selected by the customer’s specific requirements.
2. The shredder capacity can be influenced by the material compostion and output size.

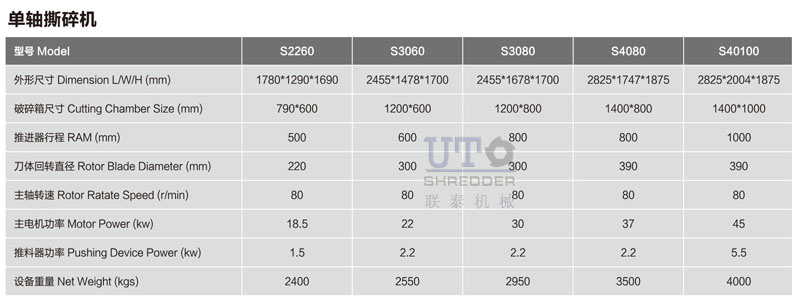

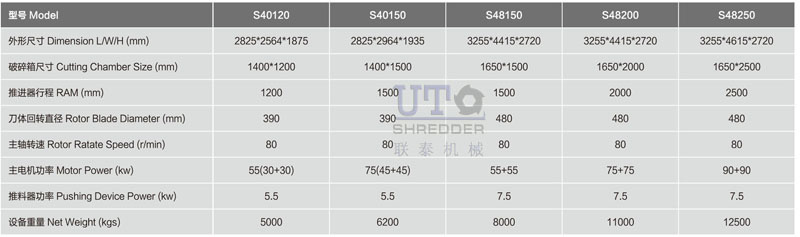

The above specifications are only for reference and subject to change without prior notice, please confirm with our sales representative when making order.
